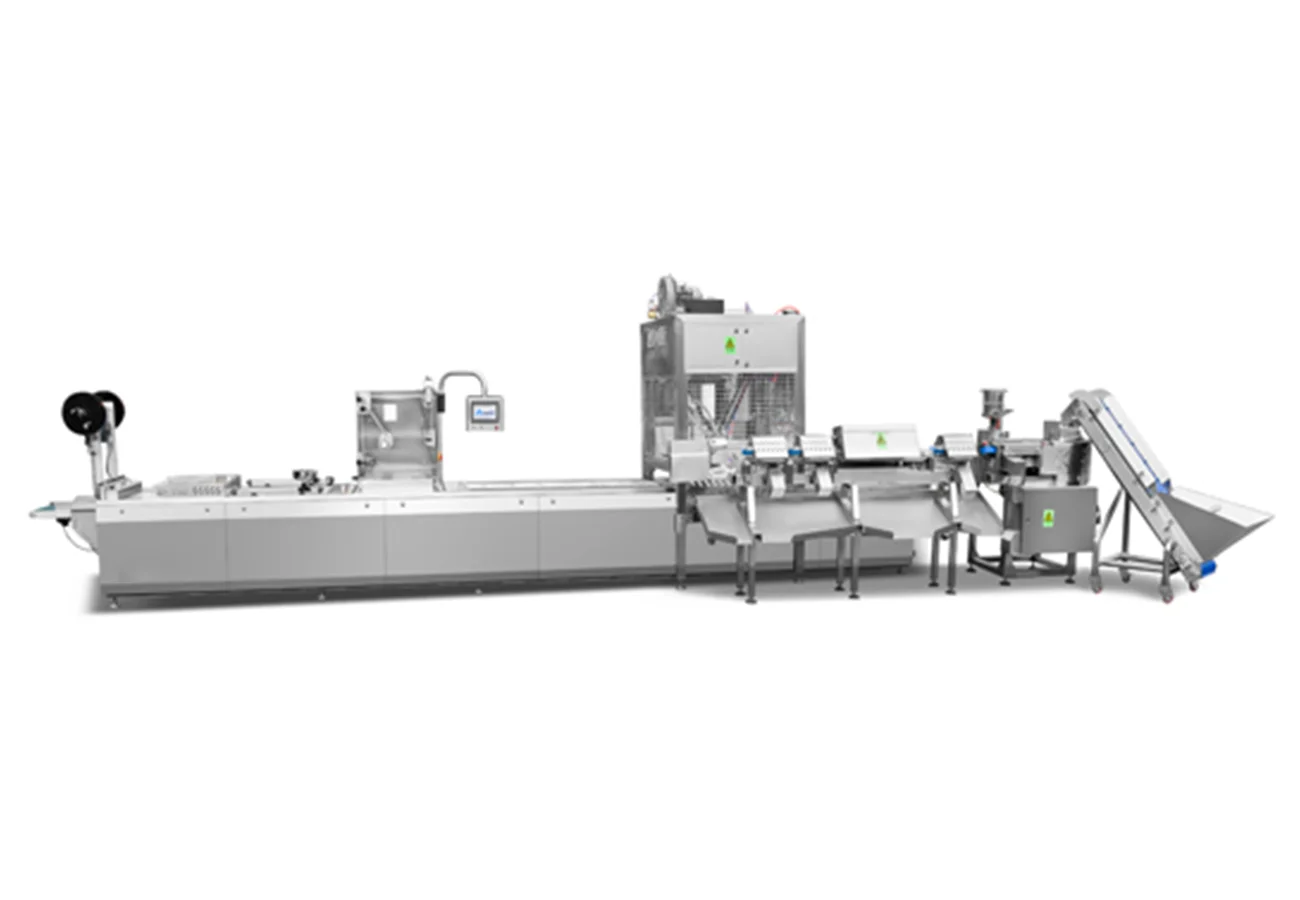

Hot Pot Ingredient Thermoforming Vacuum Packaging Machine — DLZ-520/560/620
Package hot pot ingredients automatically in formed packs configured for the product. The machine combines weighing, automatic loading, and quantitative filling for meat, meatballs, seafood, vegetables, and tofu products. It supports soft film, hard film, and aluminum foil, with customizable molds for different product and pack formats.
Description
The DLZ-520/560/620 series is designed for continuous packaging of hot pot ingredients. It combines thermoforming with automatic weighing, loading, and quantitative filling to help produce standardized portions and reduce manual filling. The integrated multi-head weighing system has a stated precision of ±1–2 g, while automatic loading feeds products into the molds.
The machine can handle sliced meat, meatballs, seafood, vegetables, and tofu products. Custom molds can be made for different ingredient shapes and sizes. The series supports soft film, hard film, and aluminum foil, with multi-step variable pitch to accommodate different tray depths and formats. Vacuum and modified atmosphere packaging options are available according to the required configuration.
Some specifications vary by model, including film width, forming depth, speed, dimensions, and power. Published packaging speeds range from 5 to 12 cycles per minute depending on the model, with maximum draw depths from 120 to 150 mm. Specifications may change with custom configurations, so confirm values for the intended product and package before specifying the machine for a project.
Contact us to review ingredient types, target pack weight, tray format, film material, and production rate. These details help determine the suitable model, mold, weighing system, and loading configuration for your line.
Published technical specifications
| Specification | DLZ-520 | DLZ-560 | DLZ-620 |
|---|---|---|---|
| Power supply | 380V / 50Hz / 3-phase | 380V / 50Hz / 3-phase | 380V / 50Hz / 3-phase |
| Approx. total power | 14–16 kW | 16–18 kW | 18–20 kW |
| Upper film width | 495 mm | 555 mm | 595 mm |
| Lower film width | 522 mm | 562 mm | 622 mm |
| Packaging speed | 5–12 cycles/min | 5–10 cycles/min | 5–10 cycles/min |
| Maximum draw depth | 120 mm | 130 mm | 150 mm |
| Approx. dimensions (L × W × H) | 7800×1250×1950 mm | 8500×1300×1980 mm | 9200×1400×2000 mm |
| Approx. weight | 2,200 kg | 2,600 kg | 3,000 kg |
| Weighing system | Automatic multi-head weigher; stated precision ±1–2 g | Automatic multi-head weigher; stated precision ±1–2 g | Automatic multi-head weigher; stated precision ±1–2 g |
| Film and molds | Soft/hard/aluminum film; custom molds | Soft/hard/aluminum film; custom molds | Soft/hard/aluminum film; custom molds |
